Description

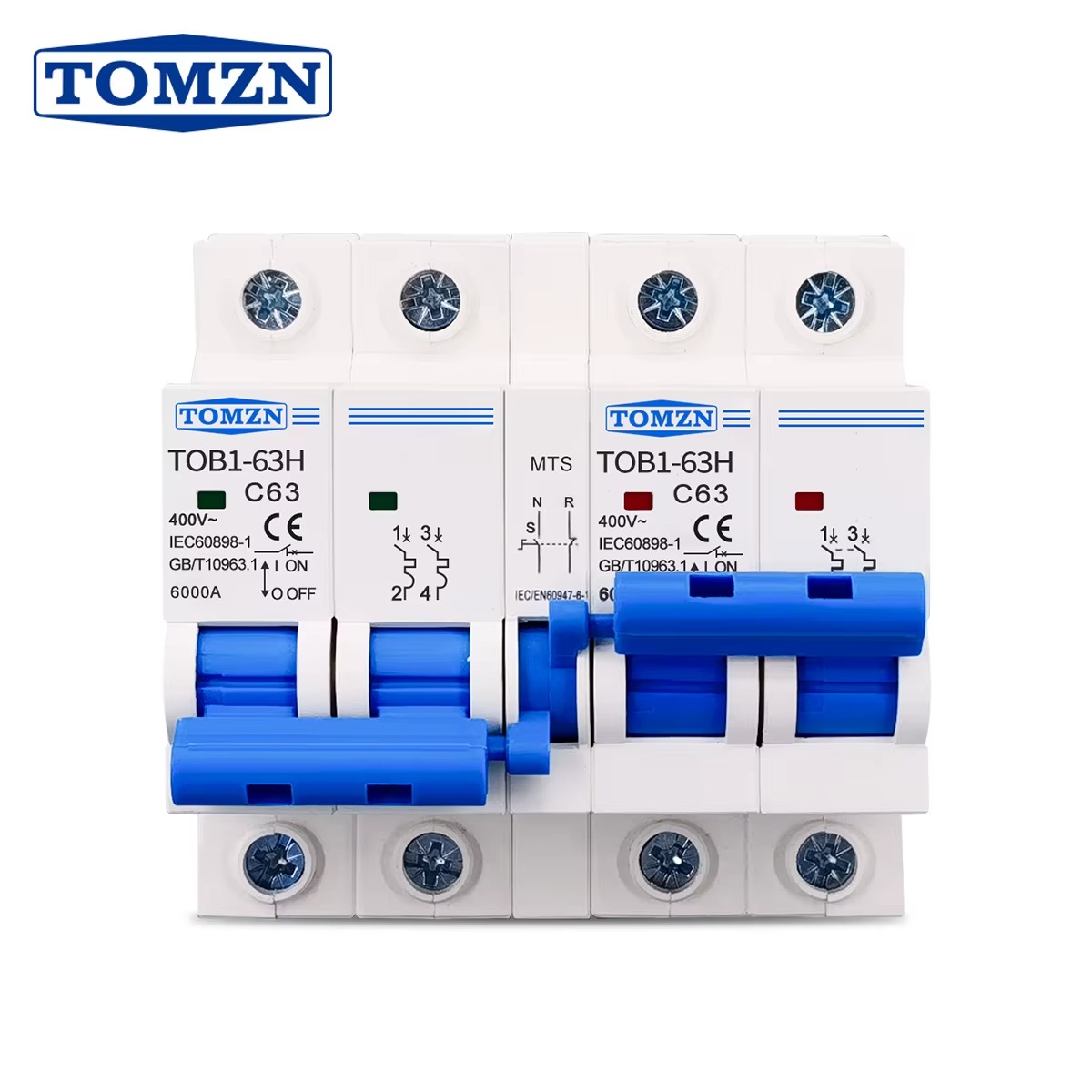

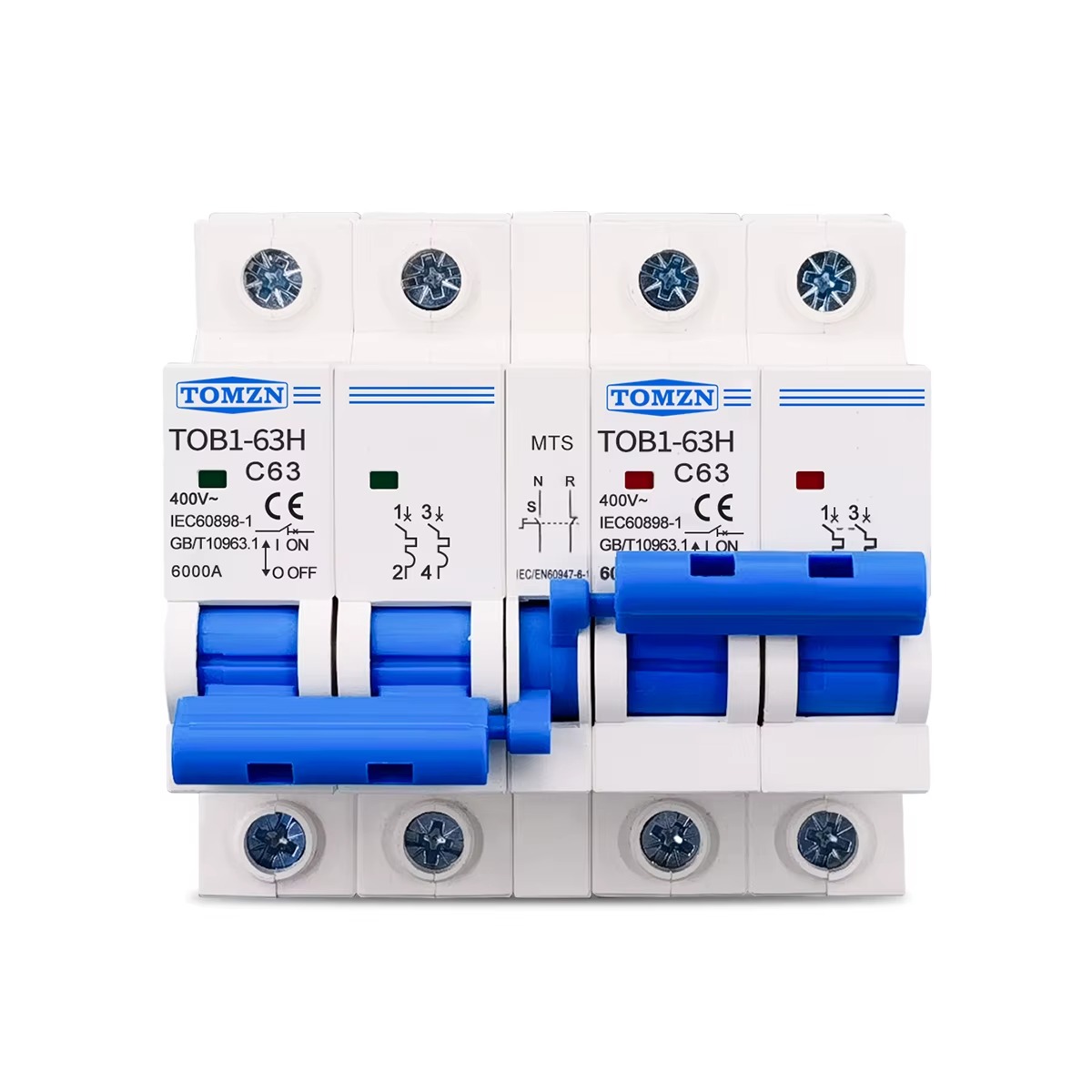

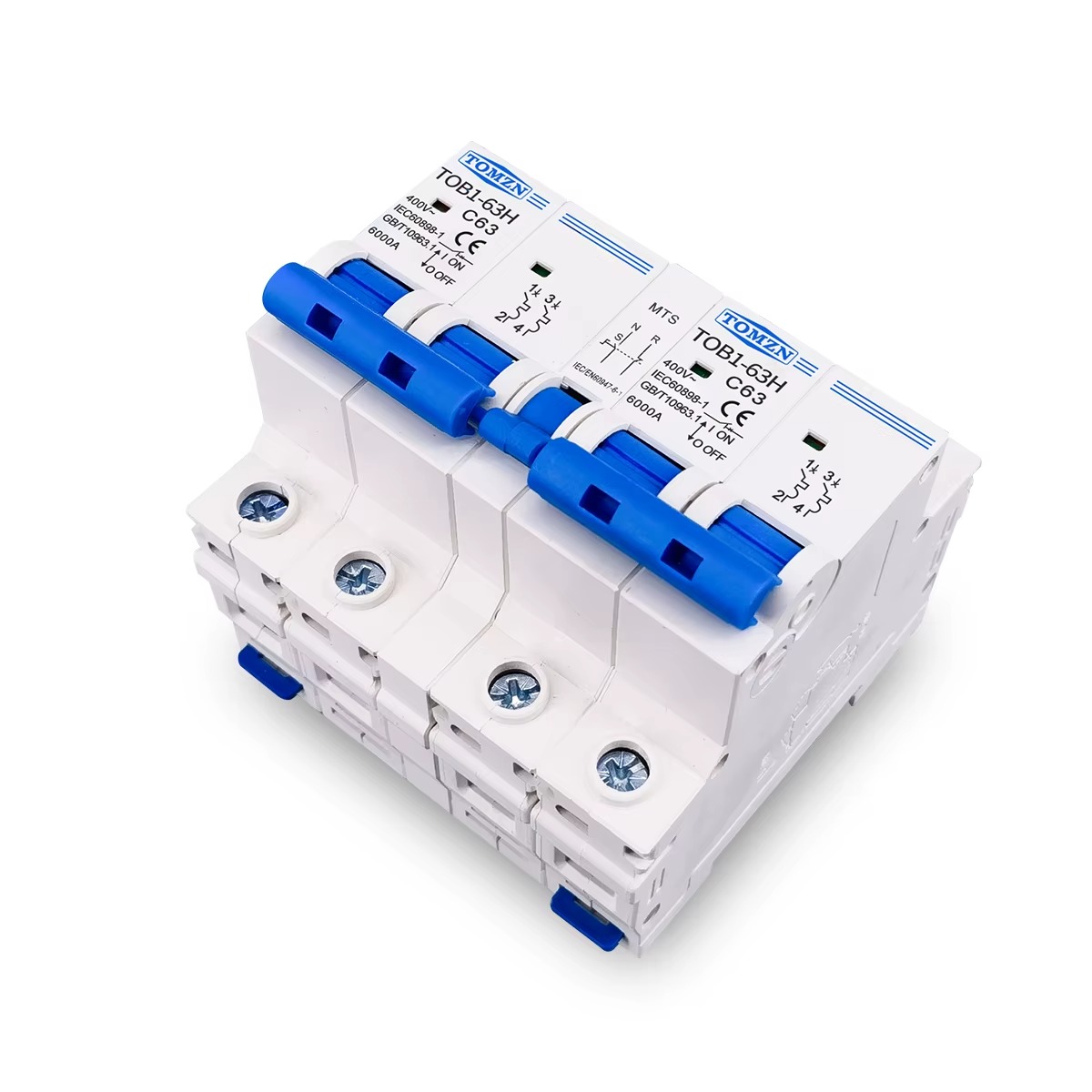

The TOMZN TOB1-63H is a high-performance Dual Power Automatic Transfer Switch (MTS) combined with a 2-pole miniature circuit breaker. Engineered for professionals and industrial applications, this unit delivers automatic switchover between two power sources, ensuring an uninterrupted power supply for critical loads. Built to international standards IEC60898-1 and GB/T10963.1, it carries the CE mark and features a robust breaking capacity of 6000A, making it suitable for demanding electrical environments. KEY SPECIFICATIONS: • Brand: TOMZN • Model: TOB1-63H
• Function: Dual Power MTS + MCB
• Poles: 2 (2P) • Rated Current: 63A
• Rated Voltage: 400V AC
• Tripping Curve: C63
• Breaking Capacity: 6000A •
Standards: IEC60898-1 / GB/T10963.1
• Certification: CE • Mounting: DIN Rail
• Switch Positions: N (Normal), R (Reserve), S (Standby) IDEAL APPLICATIONS:
✔ Backup generator switchover systems
✔ Industrial control panels
✔ Commercial electrical distribution boards
✔ UPS and emergency power systems
✔ Residential solar + grid dual-source setups WHY CHOOSE TOMZN TOB1-63H? The integrated MTS module (Manual Transfer Switch terminals: N, R, S) eliminates the need for separate switching equipment, saving panel space and installation costs. LED indicators on each breaker section provide instant visual status: green for normal, red for reserve/trip status.
