Description
The MC4 Solar Connector is an industry-standard connector used to link solar panels to cables in photovoltaic (PV) systems. This listing includes a complete pair one male and one female connector along with two crimp pins (one for each side), making it a ready-to-use solution for solar installations. Designed for outdoor environments, the connector features an IP67 waterproof rating, UV-resistant housing, and a secure snap-lock mechanism that prevents accidental disconnection. The robust copper crimp pins ensure low-resistance, high-conductivity connections for maximum power transfer.
TECHNICAL SPECIFICATIONS:
• Type: MC4 Male + Female Connector Pair
• Rated Voltage: 1000V DC
• Rated Current: 30A
• Cable Compatibility: 4mm² – 6mm² PV solar cable
• Protection Rating: IP67 (Dust & Waterproof)
• Housing Material: UV-resistant black nylon (PA66)
• Contact Material: Tinned copper crimp pins
• Temperature Range: -40°C to +90°C
• Standard: TUV / IEC 62852
WHAT’S INCLUDED:

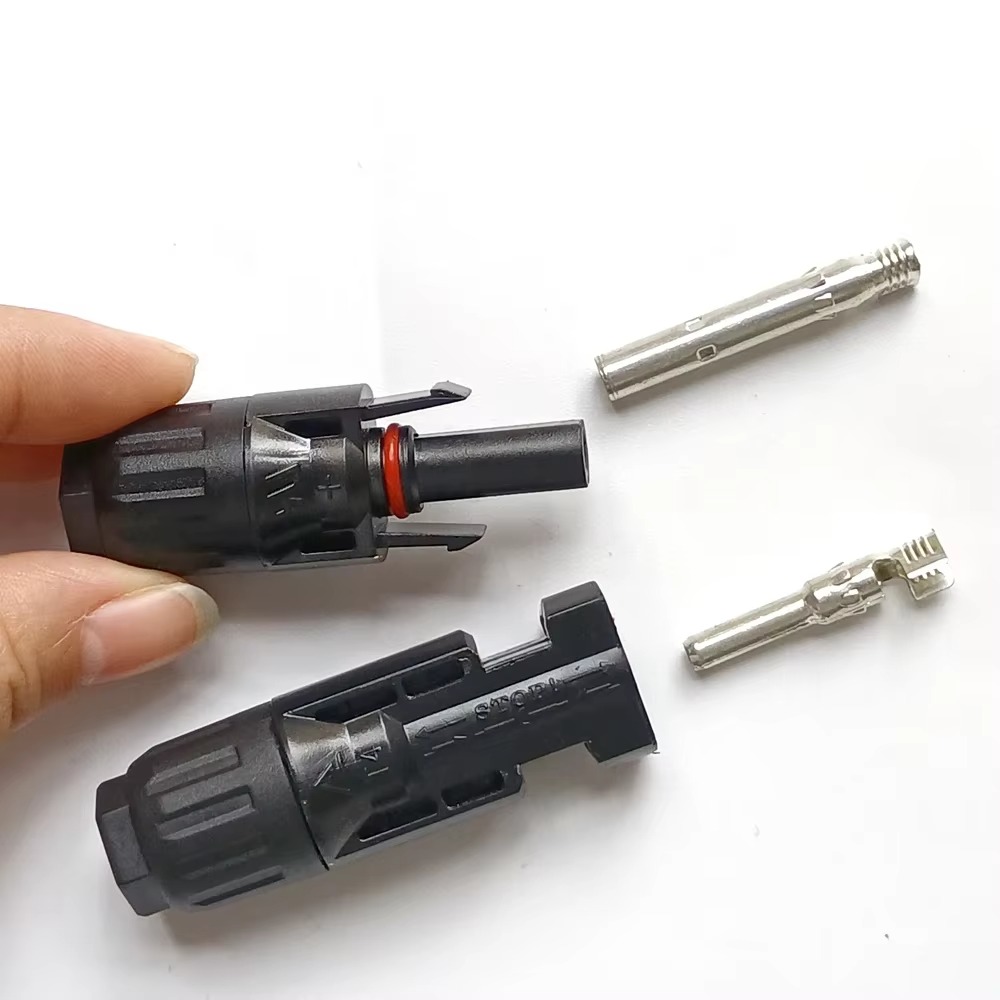

✔ 1x MC4 Male Connector
✔ 1x MC4 Female Connector
✔ 2x Crimp Pins (male + female) IDEAL FOR
: • Rooftop solar panel installations • Off-grid solar systems
• Solar farms & commercial PV projects
• Caravan, RV & boat solar setups
• DIY solar cable extensions & repairs
WHY MC4 STANDARD?
MC4 connectors are the global standard for solar panel wiring. Their tool-free mating, weatherproof seal, and universal compatibility make them the preferred choice for installers worldwide. This pair works seamlessly with panels from major brands like Jinko, Longi, Canadian Solar, and more.
